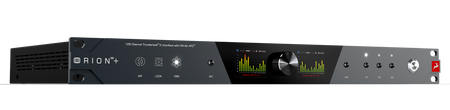

Antelope Audio Orion 32+ Gen 4
Thunderbolt™ & USB 32‑Channel AD/DA Audio Interface

The Antelope Audio Orion 32+ Gen 4 is a flagship, rackmount Thunderbolt and USB audio interface designed for professional studios, live sound environments, and broadcast facilities. As the latest evolution of Antelope’s legendary Orion series, Gen 4 delivers cutting‑edge conversion, massive I/O capacity, and industry‑leading clocking technology in a compact 1U chassis.

With 32 channels of pristine DC‑coupled analog AD/DA conversion, expanded digital connectivity, and 128 channels of I/O over Thunderbolt 3, the Orion 32+ Gen 4 is built to handle large‑scale recording, mixing, post‑production, and immersive audio workflows with absolute precision.

PROFESSIONAL‑GRADE CONVERSION AND CLOCKING
The Orion 32+ Gen 4 features upgraded converters capable of delivering up to 130 dB of dynamic range, ensuring exceptional clarity, depth, and detail. Antelope’s renowned 4th Generation Acoustically Focused Clocking (AFC) with 64‑bit jitter management provides rock‑solid timing and phase accuracy at sample rates up to 192 kHz, making it ideal for mission‑critical applications.

EXTREME CONNECTIVITY AND SCALABILITY
Using Thunderbolt 3, the Orion 32+ Gen 4 supports up to 128 channels of I/O, with the ability to daisy‑chain up to four units from a single computer connection. USB connectivity provides up to 32 channels of I/O for broader system compatibility. Optical MADI, ADAT, and S/PDIF support make integration with large consoles, converters, and digital systems seamless.

IMMERSIVE AND SURROUND‑READY MONITORING
The Orion 32+ Gen 4 supports Atmos‑ready and multi‑channel monitoring workflows with optional monitoring calibration tools. Flexible routing, monitor control, and preset recall make it an ideal centerpiece for surround, post‑production, and immersive audio studios.

BUILT FOR MODERN STUDIOS
With a redesigned software control panel, DC‑coupled outputs for modular synth control, and ultra‑flexible routing, the Orion 32+ Gen 4 adapts easily to complex studio setups. Its solid metal 1U construction ensures long‑term durability in professional environments.

KEY FEATURES
• 32×32 channels of DC‑coupled analog AD/DA conversion
• Up to 130 dB dynamic range
• 128 channels of I/O via Thunderbolt 3
• 32 channels of I/O via USB
• Optical MADI I/O (up to 128 channels at 48 kHz)
• ADAT and S/PDIF digital connectivity
• 4th Generation AFC 64‑bit clocking and jitter management
• Sample rates up to 24‑bit / 192 kHz
• Atmos‑ready immersive monitoring support (optional license)
• 1U rackmount chassis
• macOS and Windows compatible

TECHNICAL HIGHLIGHTS
Analog I/O:
• 32 channels of analog input
• 32 channels of analog output (DB25)
• Dedicated stereo monitor outputs (1/4")

Digital I/O:
• Optical MADI
• ADAT
• S/PDIF

Connectivity:
• Thunderbolt 3
• USB

Clocking:
• Word Clock In and Out
• 10 MHz atomic clock input
• 64‑bit AFC technology

IN THE BOX
• Antelope Audio Orion 32+ Gen 4 Audio Interface
• Power cable
• Quick start guide
• Warranty card
