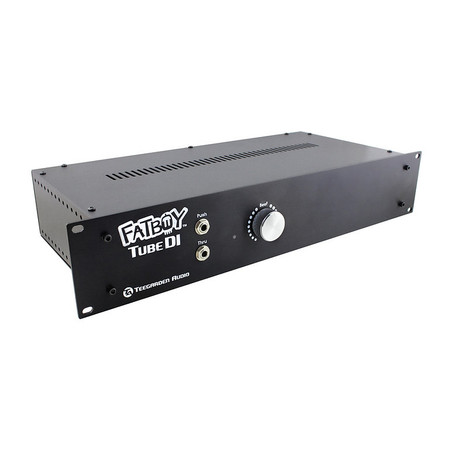

FATBOY TUBE Mono Rack Mount
Same Fatboy Tube DI Sound in a 2U Rack Mount Package
In a few short years, the Fatboy Tube DI has become the vacuum tube based direct injection device by which all others are measured. The first product initially produced by Teegarden Audio, the Fatboy Tube DI quickly caught on with the Nashville recording community and now can be heard on countless chart topping hits from artists in Country, Rock, Folk, Pop, and CCM. Simplicity of design and use as well as sonic superiority, makes the Fatboy Tube DI the DI of choice for discerning players, engineers and producers.
The Fatboy Tube DI has become the vacuum tube direct injection
-
FATBOY TUBE DI FEATURES:
-
Vacuum Tube (Valve) based Direct Injection Box (DI)
-
Discrete electronics
-
Compact & Rugged
-
Hand Built in the USA
-
Transformer Balanced LoZ XLR Outputs (Line Level and Mic Level)
-
Pin 1 Ground Lifts
-
Will drive line level direct to converters and DAWs, no mic preamp needed
-
-
FATBOY TUBE DI SPECIFICATIONS:
-
Frequency Response 7Hz – 30kHz +/- 1 dB
-
Input impedance: 1M ohms
-
Gain range: 27-28dB
-
Maximum Output Before Clipping +18 dBu
-
Noise (EIN): less than -113dB
-
Distortion: Less than 0.15% 1KHz 1V
-
Power Requirements: 100/120/VAC – 18W (24VAC)
-
Dimensions (W x H x D) 5.4” x 2.6” x 8” • Weight 5 lb. (2.27 kg.)
-
