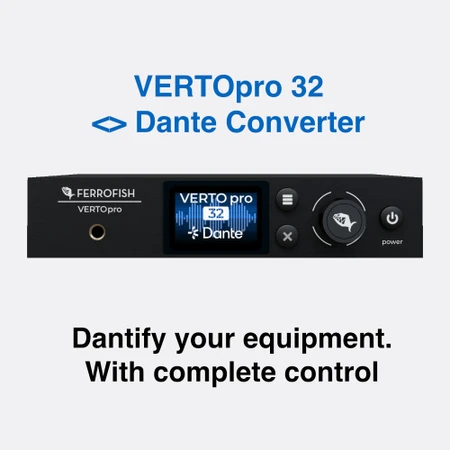

The Ferrofish VERTOpro 32
The Ferrofish VERTOpro 32 is an ADAT-to-Dante converter and router for professional audio systems. It brings existing optical ADAT equipment into a Dante network and lets you route signals from the front panel, in blocks of eight or channel by channel.
ADAT and Dante
• Four optical ADAT inputs and four optical ADAT outputs
• Up to 32 × 32 ADAT channels at 48 kHz, 16 × 16 at 96 kHz or 8 × 8 at 192 kHz
• Dante interface with up to 64 × 64 channels at 48 kHz
• Two Gigabit Ethernet ports for switched or redundant network operation; AES67 support
Control and monitoring
• 3-inch IPS colour display for levels, routing, clock status and configuration
• Integrated 6.3 mm headphone output for monitoring digital signals
• RemoteFish control from Windows or macOS via USB-MIDI or MIDI
• Word Clock input and output on BNC connectors
Optional MADI expansion
Two SFP slots allow MADI functionality to be added. A separate MADI licence and suitable Ferrofish SFP modules are required; MADI is not included as standard.
The compact half-width, 1U unit supports sample rates up to 192 kHz.
